Copper Alloy Contact MIL-DTL-38999 Series 2 6 Male Pins Mil Spec 38999

KAIDA HOLDING LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Copper Alloy Contact MIL-DTL-38999 Series 2 6 Male Pins Mil Spec 38999

Brand Name : KAIDA

Model Number : MS27508E08B35PN

Place of Origin : China

Certification : AS9001&GJB9001

MOQ : 5 PCS

Price : 20$-50$

Payment Terms : L/C, T/T

Supply Ability : 100000

Delivery Time : 1-4 Weeks

Packaging Details : Standard Export Package

Contact Material : Copper Alloy

Gender : Box Mounting Receptacle

Voltage Rating : 500 V

Shell Size : 08

Finsh : Olive Green Cadmium

Contact Plating : Gold

Contact Termination : Crimp

Insulator Material : Thermoplastic

Contact Now

Exceptional Copper Alloy Contact in MIL-DTL-38999 Series Ⅱ.6 Male Pins.Olive Green Cadmium.MS27508E08B35PN

Part Number:MS27508E08B35PN

Product Description:

MIL-DTL-38999 Series Ⅱ is a MS27508 Box Mounting Receptacle connector, specifically designed for high-performance and high-reliability applications. This series utilizes a 6-contact configuration with 7.5 A current rating, and is constructed from copper alloy for superior strength and durability. It has a wide operating temperature range of -55 to 125°C, making it an ideal choice for applications where sustained temperature changes are likely. The MIL-DTL-38999 Series Ⅱ connector is reliable, and is designed to meet the stringent requirements of military and aerospace applications.

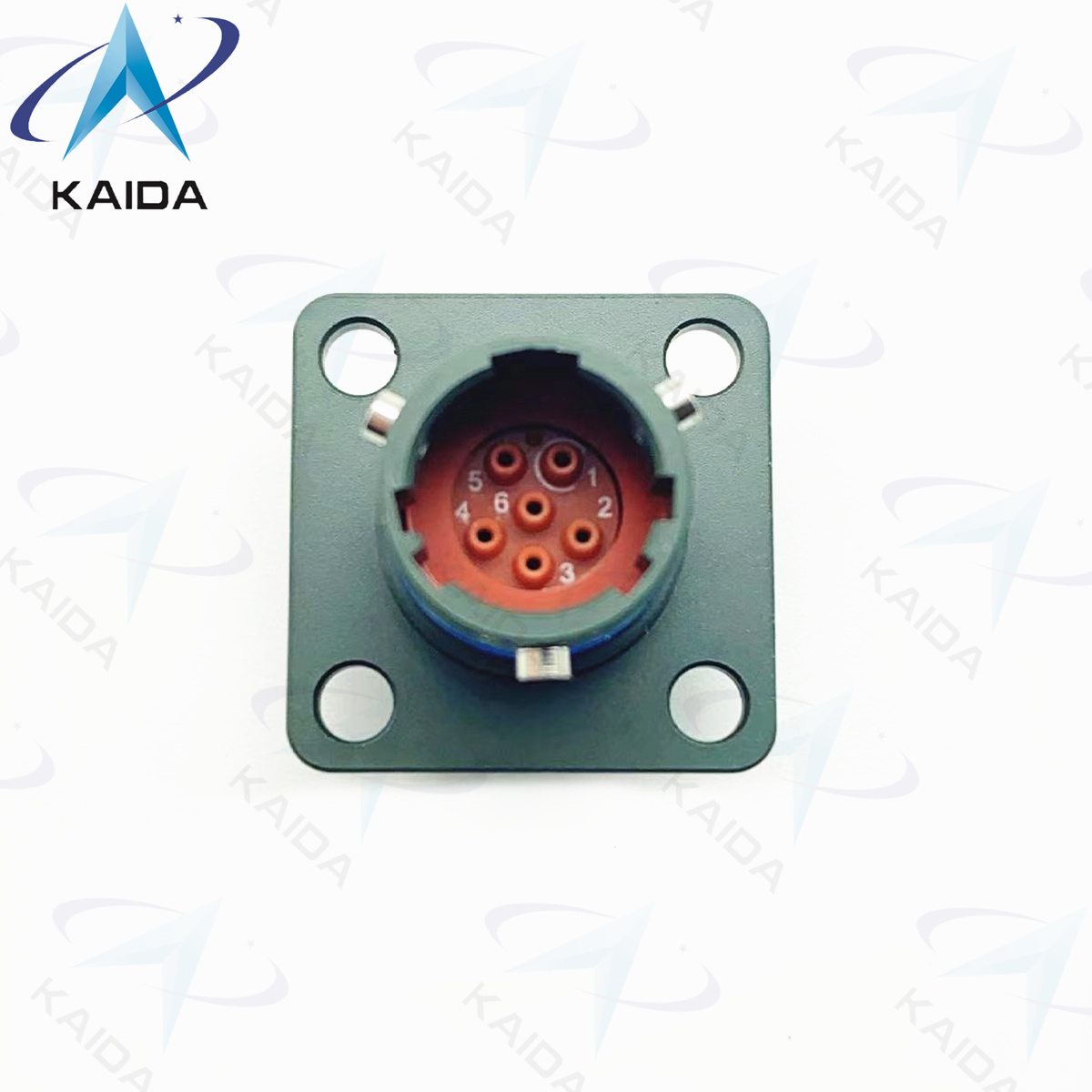

Copper Alloy Contact MIL-DTL-38999 Series 2 6 Male Pins Mil Spec 38999

Features:

  • Product Name: MIL-DTL-38999 Series Ⅱ
  • Contact Plating: Gold
  • Current Rating: 7.5 A
  • Contact Material: Copper Alloy
  • Insulator Material: Thermoplastic
  • Series: MIL-DTL-38999 Series Ⅱ
  • Olive green cadmium
  • Box Mounting Receptacle
  • Solder Termination

Technical Parameters:

Attribute Value
Gender Box Mounting Receptacle
Contact Material Copper Alloy
Contact Plating Gold
Insulator Material Thermoplastic
Finish Olive Green Cadmium
Number of Contacts 6
Series MIL-DTL-38999 Series Ⅱ
Operating Temperature -55 To 125 °C
Current Rating 7.5 A
Voltage Rating 500 V

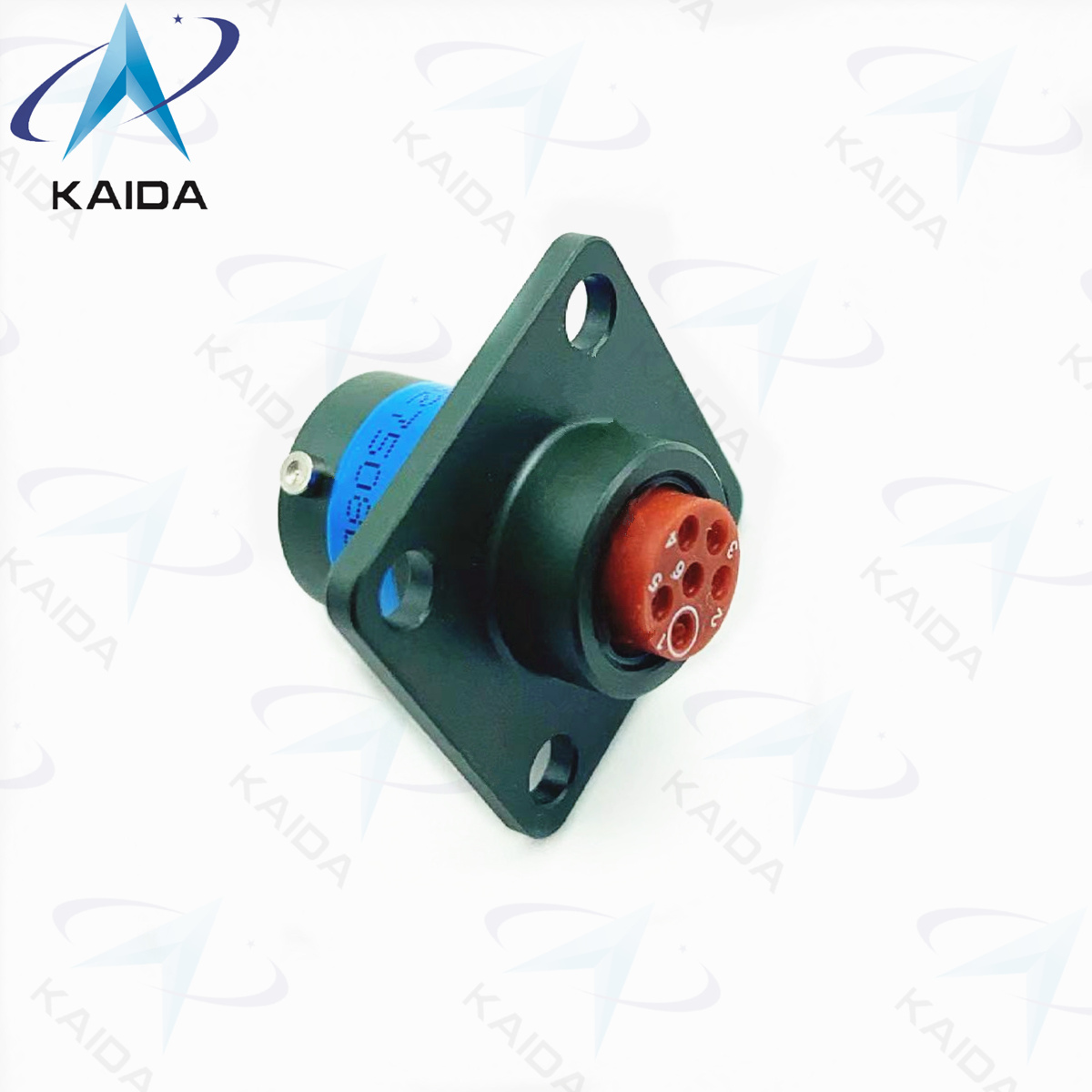

Copper Alloy Contact MIL-DTL-38999 Series 2 6 Male Pins Mil Spec 38999

Copper Alloy Contact MIL-DTL-38999 Series 2 6 Male Pins Mil Spec 38999Copper Alloy Contact MIL-DTL-38999 Series 2 6 Male Pins Mil Spec 38999

Copper Alloy Contact MIL-DTL-38999 Series 2 6 Male Pins Mil Spec 38999

Applications:

KAIDA MS27508E08B35PN is a MIL-DTL-38999 Series II connector designed for back panel mounting or box mounting receptacle. It features 6 contacts in crimp contact termination and Olive green cadmium finish. The contact material is made of copper alloy with a maximum current rating of 7.5A. It is perfectly suitable for harsh environment applications, like military and aerospace applications.

Customization:

KAIDA MS27508E08B35PN MIL-DTL-38999 Series Ⅱ Connectors
  • Brand Name: KAIDA
  • Model Number: MS27508E08B35PN
  • Place of Origin: China
  • Current Rating: 7.5 A
  • Contact Plating: Gold
  • Shell Size: 08
  • Operating Temperature: -55 To 125°C
  • Contact Material: Copper Alloy

Support and Services:

MIL-DTL-38999 Series Ⅱ provides technical support and services, including the following:

  • Design consulting
  • Product installation and commissioning
  • Product maintenance and repair
  • Application support and troubleshooting
  • Software updates
  • Product warranty

Packing and Shipping:

Packaging and Shipping for MIL-DTL-38999 Series Ⅱ:

  • Packaging should be done in accordance with the requirements of MIL-PRF-38999 Series Ⅱ.
  • The package should be sealed with a sealant material.
  • Packaging should be done in accordance with the requirements of MIL-STD-2073-1.
  • Packaging should be done in accordance with the requirements of MIL-STD-2073-2.
  • The product should be shipped in accordance with MIL-STD-129.
  • The product should be shipped in accordance with MIL-STD-130.
  • The product should be shipped in accordance with MIL-HDBK-119.

FAQ:

Q1: What is MIL-DTL-38999 Series Ⅱ? A1: MIL-DTL-38999 Series Ⅱ is a series of circular electrical connectors manufactured by KAIDA, with model number MS27508E08B35PN and made in China. Q2: What are the applications of MIL-DTL-38999 Series Ⅱ? A2: MIL-DTL-38999 Series Ⅱ connectors are used in aerospace and military applications, as well as in commercial and industrial applications. Q3: What features does MIL-DTL-38999 Series Ⅱ provide? A3: MIL-DTL-38999 Series Ⅱ connectors provide high reliability and performance in harsh environments. It provides a secure, rugged, and durable connection that resists shock, vibration, and extreme temperatures. Q4: What materials are used to make MIL-DTL-38999 Series Ⅱ? A4: MIL-DTL-38999 Series Ⅱ connectors are made of metal and plastic components, including stainless steel, aluminum, and PBT thermoplastic. Q5: What are the sizes available for MIL-DTL-38999 Series Ⅱ? A5: MIL-DTL-38999 Series Ⅱ are available in a variety of sizes ranging from 8 to 51 contacts. Contact sizes range from 20AWG to 10AWG.

D38999 Series 2 Datasheet.pdf
